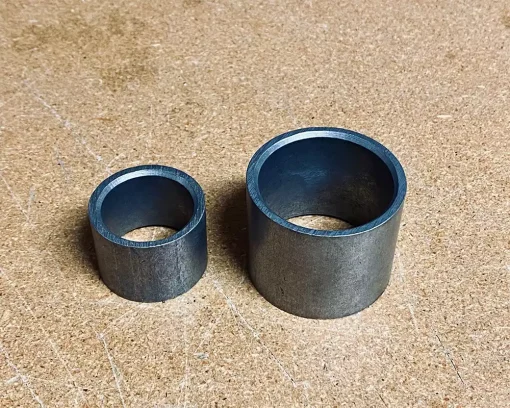

Mounting sleeve for Trail Forged Better Bushings™ for your own fabrication projects!
- 0.188 Wall Carbon steel
- Countersunk on both sides for easy bushing install
| Part Number | Applications | Sleeve Width | Sleeve OD | Sleeve ID | Bushing Part Number |
|---|---|---|---|---|---|
| TFBBSL-01 | Track Bar | 1.375″ | 1.875″ | 1.496″ | TFBB-01 |
| TFBBSL-02 | Lower and upper control arms, full size and width | 2.0″ | 2.5″ | 2.124″ | TFBB-02 |
| TFBBSL-03 | Narrow upper control arms (TJ/LJ/ZJ) | 1.625″ | 2.5″ | 2.124″ | TFBB-03 |
| TFBBSL-04 | JK Rear upper control arms | 1.875″ | 2.5″ | 2.124″ | TFBB-04 |
| TFBBSL-05 | Fits TFBB05 RC replacement bushings | 2″ | 2.625″ | 2.25″ | TFBB-05 |
Notes:
- Be sure to leave at least one flat side when welding to allow the sleeve to sit flat when pressing bushings in
- Allow sleeve to FULLY cool before pressing bushing in
| Sleeve Size | TFBBSL-01, TFBBSL-02, TFBBSL-03, TFBBSL-04, TFBBSL-05 |
|---|
